M2 Heatsink Spring Screws 10mm Length 2.5mm Thread Phillips Drive
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | guanbiao |
| 証明: | ISO9001 |
| モデル番号: | M2 |
| 書類: | guanbiao hardware PPT(new)P...DF.pdf |
お支払配送条件:
| 最小注文数量: | 50000 |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | ビニール袋 +カートン +パレット |
| 受渡し時間: | 15-20勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 5000000 |
|
詳細情報 |
|||
| 製品アプリケーション: | 家電 | リードタイム: | 15〜20営業日 |
|---|---|---|---|
| フィンシュ: | リン酸亜鉛コーティング（リン酸塩） | 材料: | 高炭素鋼（グレード4.8/8.8/10.9が利用可能） |
| 寛容: | +/- 0.05mm | 仕様: | ISO |
| 量: | 1000個セット | サンプル: | 無料サンプル |
| 全長: | 10mm | スレッドタイプ: | パンヘッド |
| 負荷容量: | 中くらい | ドライブタイプ: | フィリップス |
| ハイライト: | M2 heatsink spring screws,10mm spring loaded screws,2.5mm thread Phillips drive screws |
||
製品の説明

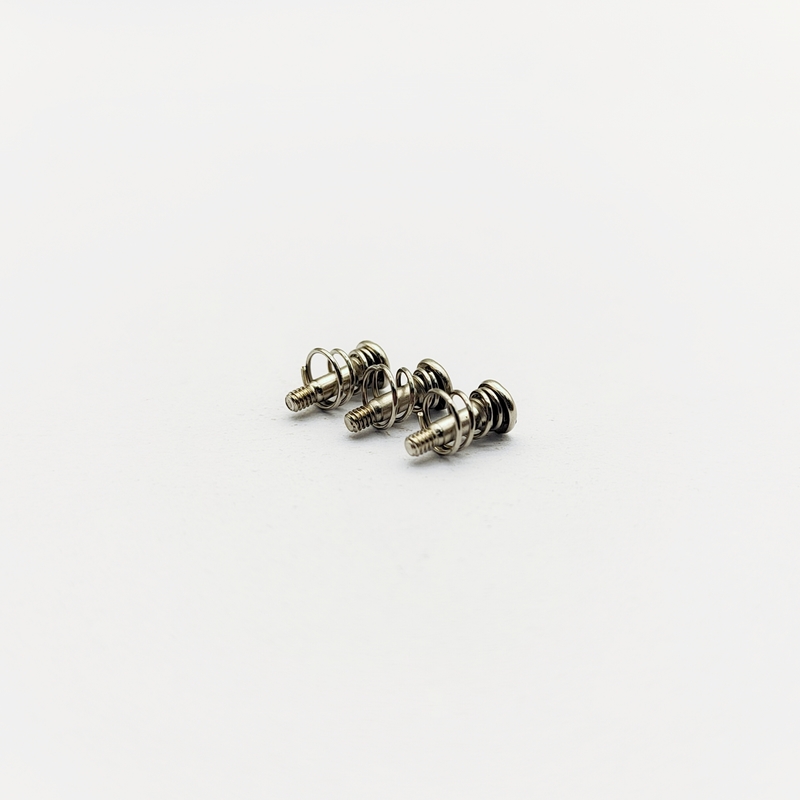

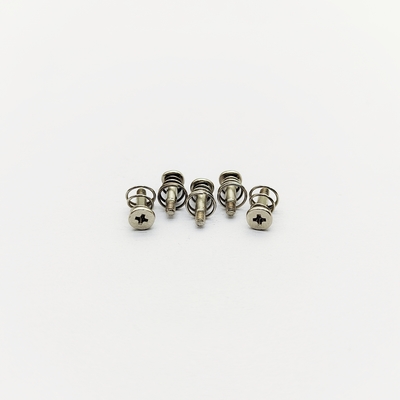

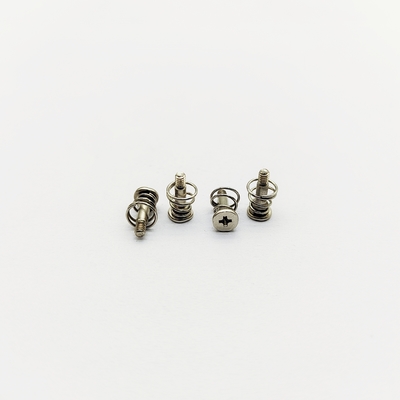

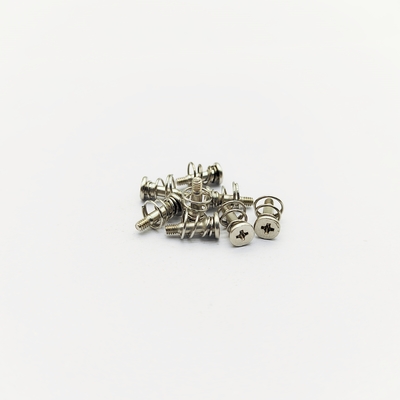

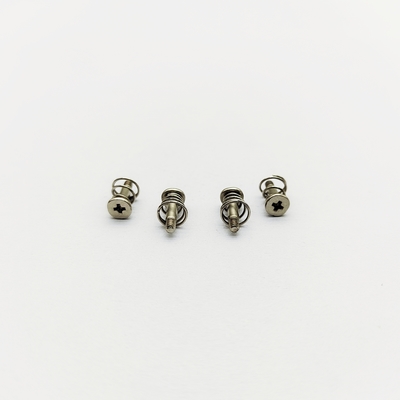

M2 Heatsink Spring Screws 10mm Length | 2.5mm Thread | Phillips Drive | Zinc Phosphate
Premium M2 heatsink spring screws, 10mm overall length, 2.5mm thread. Zinc phosphate coating for corrosion resistance. Ensures optimal mounting pressure for compact electronics cooling. Custom options available.
Our M2 Heatsink Spring Screws are engineered for applying consistent and reliable clamping pressure in compact thermal management solutions. The integrated spring mechanism automatically compensates for thermal expansion, component height tolerances, and prevents PCB damage from over-torquing. This ensures optimal thermal contact between the heatsink and sensitive components (e.g., RAM chips, SSDs, small form-factor ICs), critical for effective heat dissipation and long-term device reliability.
Technical Specifications
| Total Length | 10.0 mm (±0.1mm) |
|---|---|
| Thread Length | 2.5 mm (±0.1mm) |
| Thread Diameter | M2 (Metric) |
| Drive Type | Cross Recess (Phillips #0 or #1) |
| Head Style | Pan Head |
| Material | High-Carbon Steel (Grade 4.8/8.8/10.9 available) |
| Spring Material | Stainless Steel (Grade 304) |
| Surface Treatment | Zinc Phosphate Coating (Phosphating) |
| Customization | Various lengths, platings (Zn, Ni), materials (Stainless Steel), drive types (Pozidriv, Torx) available |
Applications & Uses
These miniature spring screws are specifically designed for securing heatsinks in space-constrained electronic applications where precise pressure is vital:
- Computer Hardware: Mounting heatsinks on M.2 NVMe SSDs, RAM modules, chipset controllers, and small form-factor motherboard components.
- Consumer Electronics: Securing thermal solutions in laptops, tablets, gaming consoles, routers, and set-top boxes.
- Telecommunications Equipment: Fastening heatsinks on network interface cards, optical modules, and RF components.
- Power Management: Cooling for voltage regulators and power ICs on densely packed PCBs.
- LED Applications: Attaching small heatsinks to high-power LED packages.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions for your fastener supply chain.
- Precise production equipment with imported machinery from Taiwan to produce precision screws and hardware accessories. Free sample testing available for compatibility verification.
- Complete quality management system with multiple strict monitoring checks for every production batch.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support services for all aspects of our spring screws, including:
- Selection advice to ensure you have the right type and size for your project
- Guidance on proper installation techniques
- Detailed product specifications and material safety data sheets
- Step-by-step installation guides and troubleshooting assistance
- Maintenance tips and best practices to extend product life
Packing and Shipping
Our spring screws are carefully packaged to ensure safe delivery:
- Individually packed in moisture-resistant plastic bags within sturdy cardboard boxes
- Proper cushioning to prevent movement during transit
- Clear labeling with product information for easy identification
- Palletized and shrink-wrapped for bulk orders
- Reliable courier services with tracking information provided
Our factory accepts customized drawings. Please contact us if you need to highlight specific certifications or other parameters in the product description.
