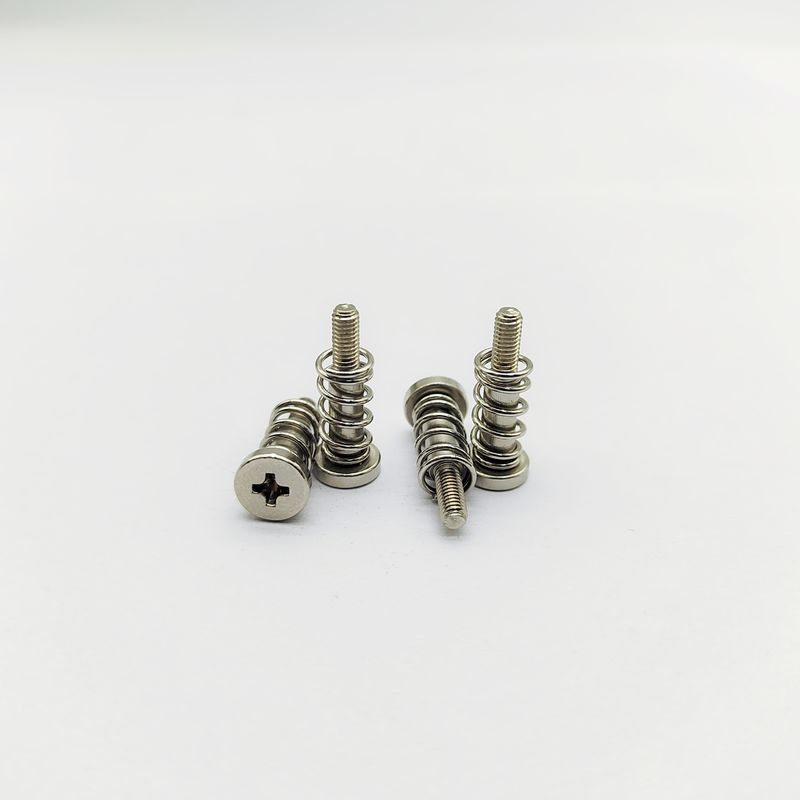

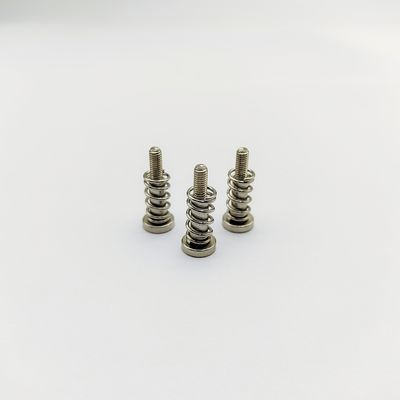

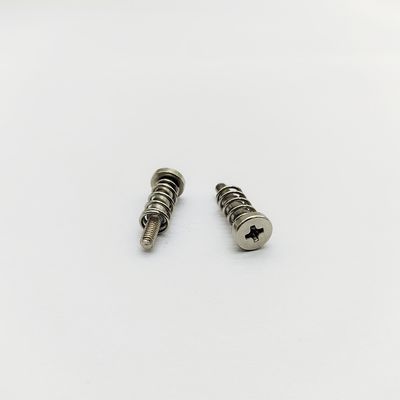

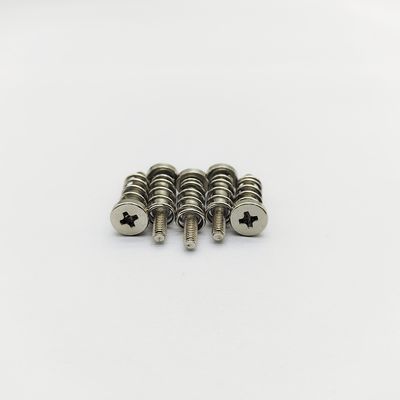

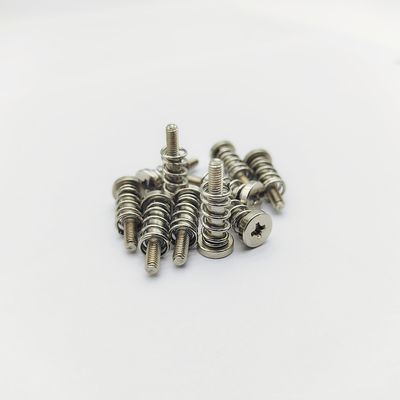

M3 Heatsink Spring Screws 21mm Length 7mm Thread Phillips Drive
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | guanbiao |
| 証明: | ISO9001 |
| モデル番号: | M3 |
| 書類: | guanbiao hardware PPT(new)P...DF.pdf |
お支払配送条件:
| 最小注文数量: | 50000 |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | ビニール袋 +カートン +パレット |
| 受渡し時間: | 15-20勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 5000000 |
|
詳細情報 |
|||
| 製品アプリケーション: | コンピュータ ハードウェア | リードタイム: | 15〜20営業日 |
|---|---|---|---|
| フィンシュ: | リン酸亜鉛コーティング（リン酸塩） | 材料: | 高炭素鋼（グレード4.8または8.8が利用可能） |
| 寛容: | +/- 0.05mm | 仕様: | ISO |
| 量: | 1000個セット | サンプル: | 無料サンプル |
| 全長: | 21mm | スレッドタイプ: | パンヘッド |
| 負荷容量: | 中くらい | ドライブタイプ: | フィリップス |
| ハイライト: | M3 heatsink spring screws,21mm spring loaded screws,7mm thread Phillips drive screws |
||
製品の説明
M3 Heatsink Spring Screws, 21mm Overall Length, 7mm Thread, Cross Recessed | Customizable
High-performance M3 heatsink spring screws, 21mm overall length & 7mm thread. Features phosphating surface treatment, ensures perfect mounting pressure & thermal conductivity. Custom specs available.
Our premium Heatsink Spring Screws are engineered to provide consistent and reliable clamping force for critical thermal management applications. The integrated spring mechanism compensates for material expansion/contraction and component height tolerances, ensuring optimal contact pressure between the heatsink and the component (e.g., CPU, GPU, power ICs) over a wide temperature range. This guarantees superior thermal conductivity, long-term stability, and prevents damage to sensitive electronics from over-torquing.
Technical Specifications
| Total Length | 21.0 mm (±0.1mm) |
| Thread Length | 7.0 mm (±0.1mm) |
| Thread Diameter | M3 (Metric) |
| Drive Type | Cross Recessed (Phillips #1) |
| Head Style | Pan Head |
| Material | High-Carbon Steel (Grade 4.8 or 8.8 available) |
| Spring Material | Stainless Steel (Grade 304) |
| Surface Treatment | Zinc Phosphate Coating (Phosphating) |
| Customization | Various lengths, materials (e.g., SS410), plating (e.g., Zinc, Ni), drive types (Pozidriv, Torx) |
Primary Uses & Applications
These screws are specifically designed for the assembly of cooling solutions in electronic devices where precise and maintained pressure is paramount. Typical applications include:
- Computer Hardware: Securing CPU coolers, GPU coolers, VRM heatsinks, and chipset coolers to motherboards and PCBs.
- Power Electronics: Mounting heatsinks on power transistors, MOSFETs, IGBT modules, and voltage regulators in power supplies and inverters.
- LED Lighting: Assembling high-power LED arrays and modules where efficient heat dissipation is critical for longevity.
- Telecommunications & Server Equipment: Fastening heatsinks in routers, switches, and server blades.
- General Electronics: Any application requiring a sprung load to compensate for tolerance stacks and ensure even thermal interface material (TIM) spread.
How to Use
- Preparation: Ensure the motherboard or PCB has pre-installed brass standoffs (or threaded inserts) with M3 threading matching the screw's specification.
- Alignment: Place the heatsink onto the component, aligning the mounting holes of the heatsink with the threaded standoffs on the PCB.
- Screw Placement: Insert the spring screw through the washer (if applicable), then through the heatsink's mounting hole.
- Initial Threading: Manually start threading the screw into the standoff to avoid cross-threading.
- Tightening: Using a # Phillips screwdriver, tighten the screw until the spring is partially compressed. Crucially, do not overtighten. The goal is to compress the spring to apply the correct force, not to drive the screw until it stops.
- Pattern: Follow a cross or star pattern (e.g., tighten screws diagonally) when installing multiple screws to ensure even pressure distribution and avoid warping the heatsink or PCB.
- Final Check: Ensure all springs are evenly compressed and the heatsink is firmly seated without any wobble.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, provide you with cost-effective screws, and help you solve the fastener supply chain.
- Precise production equipment. The company introduces all imported equipment from Taiwan to produce precision screws and hardware accessories for you. Provide free sample testing for compatibility verification.
- A complete management system, each batch of products that leave the factory undergoes multiple strict monitoring
- Dedicated account management for seamless collaboration. System-supporting services guarantee you peace of mind.
Support and Services
If you require technical support or have any questions regarding our Spring Screws product, our team of knowledgeable professionals is here to assist you. We provide comprehensive support services for all aspects of our Spring Screws. From selection advice to ensure you have the right type and size for your project, to guidance on proper installation techniques, we've got you covered.
Our support services include detailed product specifications, material safety data sheets, and step-by-step installation guides. We also offer troubleshooting assistance for any issues that may arise during the use of our Spring Screws. Whether you're a seasoned professional or a DIY enthusiast, we're committed to providing the support you need to ensure your project's success.
For maintenance tips and best practices, our experts are on hand with valuable advice to extend the life and maintain the performance of our Spring Screws. We are dedicated to providing exceptional customer support and ensuring that our products meet the highest standards of quality and reliability.
Packing and Shipping
Our Spring Screws are packaged with care to ensure they arrive at your location in perfect condition. Each pack contains a specific number of rivets, securely held within a durable, moisture-resistant plastic bag. This bag is then placed inside a sturdy cardboard box, cushioned with packing materials to prevent any movement during transit.
The boxes are sealed and labeled with product information, including the quantity and size of the rivets, for easy identification. For larger or bulk orders, multiple boxes are placed onto a pallet, shrink-wrapped, and strapped securely to minimize the risk of damage.
We ship our Spring Screws using reliable courier services to ensure timely and safe delivery. Tracking information is provided for every shipment, allowing you to monitor the progress of your order until it reaches your doorstep.
Our factory is able to accept customized drawings. To strike a balance between technical details and customer-centric messaging, please let us know if you need to tweak the description to highlight specific certifications or other parameters!
