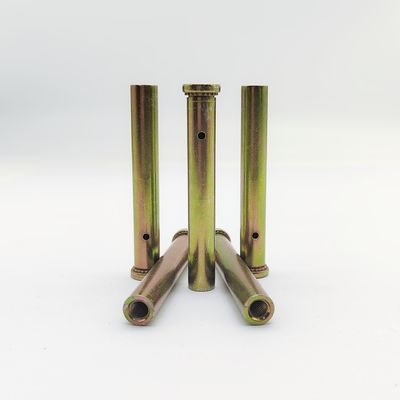

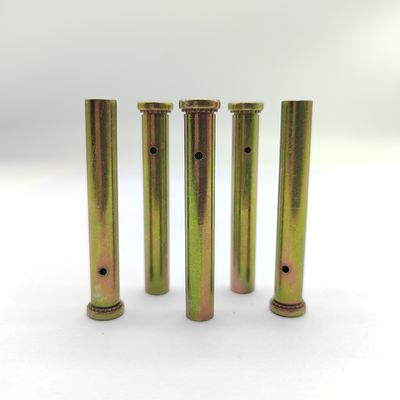

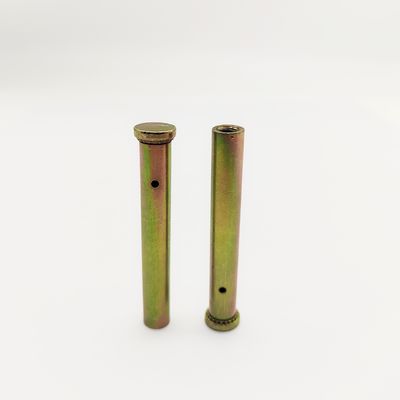

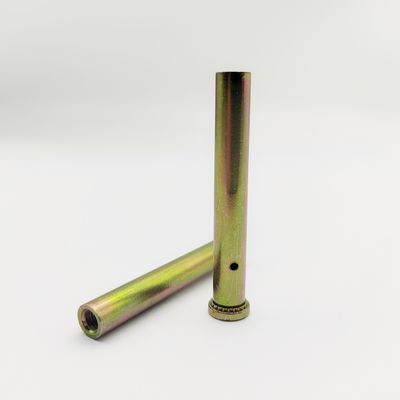

Stainless Steel Blind Hole Rivet Nut Column M6-M12 Yellow Zinc Plated
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | guanbiao |
| 証明: | ISO9001 |
| モデル番号: | カスタマイズ可能 |
| 書類: | guanbiao hardware PPT(new)P...DF.pdf |
お支払配送条件:
| 最小注文数量: | 50000 |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | ビニール袋 +カートン +パレット |
| 受渡し時間: | 15-20勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 5000000 |
|
詳細情報 |
|||
| 製品アプリケーション: | 重機 | ヘッドスタイル: | フラット |
|---|---|---|---|
| リードタイム: | 15〜20営業日 | フィンシュ: | 黄色の亜鉛メッキ**（滑らかな仕上げ、三価クロム酸塩） |
| インストール方法: | リベット | 材料: | ステンレス鋼 |
| 寛容: | +/- 0.05mm | 寸法: | 次元にカスタマイズできます |
| パネルの厚さ: | 3.0-8.0 mm | ||
| ハイライト: | stainless steel blind hole rivet nut,M6-M12 zinc plated rivet nut,yellow zinc plated steel rivet |
||
製品の説明
| Attribute | Value |
|---|---|
| Product Application | Heavy Equipment |
| Head Style | Flat |
| Lead Time | 15~20 working days |
| Finish | Yellow Zinc Plating (Smooth Finish, Tri-valent Chromate) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customize to your dimension |
| Panel Thickness | 3.0 - 8.0 mm |
Long-length blind hole rivet nut columns for thicker materials. Stainless steel with yellow zinc plating, deep serrations. M6-M12 sizes. For heavy equipment, transportation, & energy. Custom specs.
Designed for demanding applications requiring penetration through thicker materials or higher strength, our Heavy-Duty Blind Hole Rivet Nut Columns feature a reinforced design. They incorporate deeper serrations under the 90° flat head for maximum anti-rotation performance in high-vibration environments.
| Head Type | 90° Flat Head with Reinforced Serrated Knurl |
| Head Diameter (D) | M6: 12.0mm; M8: 15.0mm; M10: 18.0mm; M12: 22.0mm |
| Shank Diameter | M6, M8, M10, M12 |
| Total Length (L) | M6: 20-40mm; M8: 25-50mm; M10: 30-60mm; M12: 40-80mm (Extended Range) |
| Blind Hole Depth | ≈65-70% of Total Length (L) |
| Thread Depth (T) | ≈55-60% of Total Length (L) (Non-Full Thread Design) |
| Material | A2-80 or A4-80 (316) Stainless Steel (Optional) |
| Surface Treatment | Yellow Zinc Plating (Smooth Finish, Tri-valent Chromate) |
| Installation Force | M8: 20-25 kN; M10: 30-38 kN |
| Torque-Out Resistance | M8: ≥20 Nm; M10: ≥30 Nm |
| Panel Thickness | 3.0 - 8.0 mm |
| Customization | Custom lengths, materials |
- Heavy Equipment: Constructing frames, access panels, and hydraulic component mounts on agricultural, mining, and construction machinery.
- Transportation: Securing seats, interior panels, and equipment in buses, railcars, and trailers using thicker gauge metals.
- Renewable Energy: Assembling inverter housings, solar panel mounting structures, and wind turbine internal components.
- Power Distribution: Mounting heavy electrical components and busbars within large power distribution enclosures and switchgear.
- Welded Structures: Adding adjustable leveling points or attachment points to welded frames and supports.
- Hole Preparation: The hole must be drilled to a tight tolerance. Deburr thoroughly to ensure the deep serrations can bite cleanly into the material. For thick panels, ensure hole perpendicularity.
- Tool Setup: These high-strength, long units require a high-force hydraulic pressing tool. Confirm the tool's capacity and stroke length exceed the required installation force and length.
- Installation: Position the nut column in the hole. The pressing ram must apply force evenly to the entire end surface of the column. Apply force steadily until a clear "bottoming" feel is achieved.
- Validation: For critical applications, conduct a torque-test on a sample installation to verify it meets the specified torque-out value.
