Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | guanbiao |
| 証明: | ISO, GB, BS, DIN, ANSI,JIS |
| モデル番号: | 4.9*10.5 |
お支払配送条件:
| 最小注文数量: | 50000個 |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | ポリ袋1の小箱+outerのカートン+pallets |
| 受渡し時間: | 10-15 営業日 |
| 支払条件: | T/T |
| 供給の能力: | 100000個/日 |
|
詳細情報 |
|||
| 材料: | ステンレス鋼:302,304,316 | 生産プロセス: | 冷たいヘッディング、冷たい鍛造材 |
|---|---|---|---|
| 表面の終わり/処置: | の不動態化磨くこと | サイズ: | 4.9*10.5 |
| 糸の種類: | 機械糸 | パッケージ: | 小さな箱,小さな色の箱,輸出用紙箱,そして強い木製のパレットに置く |
| シングル: | 3.7g | ||
製品の説明
Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM

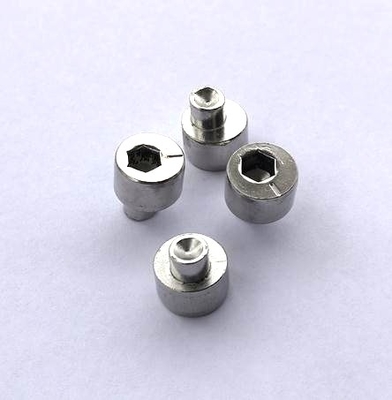

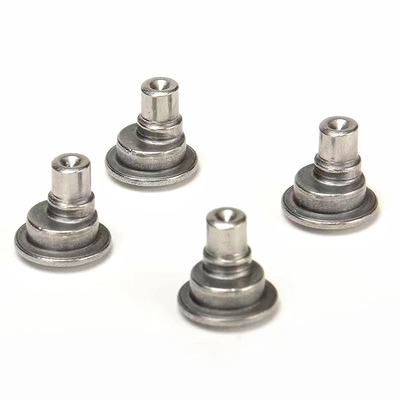

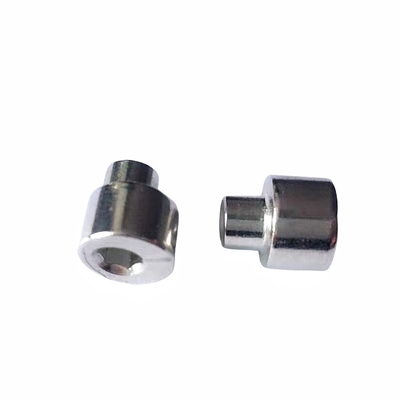

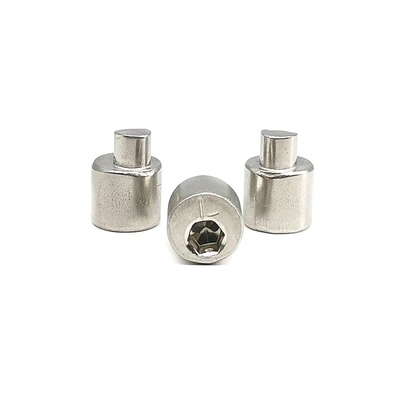

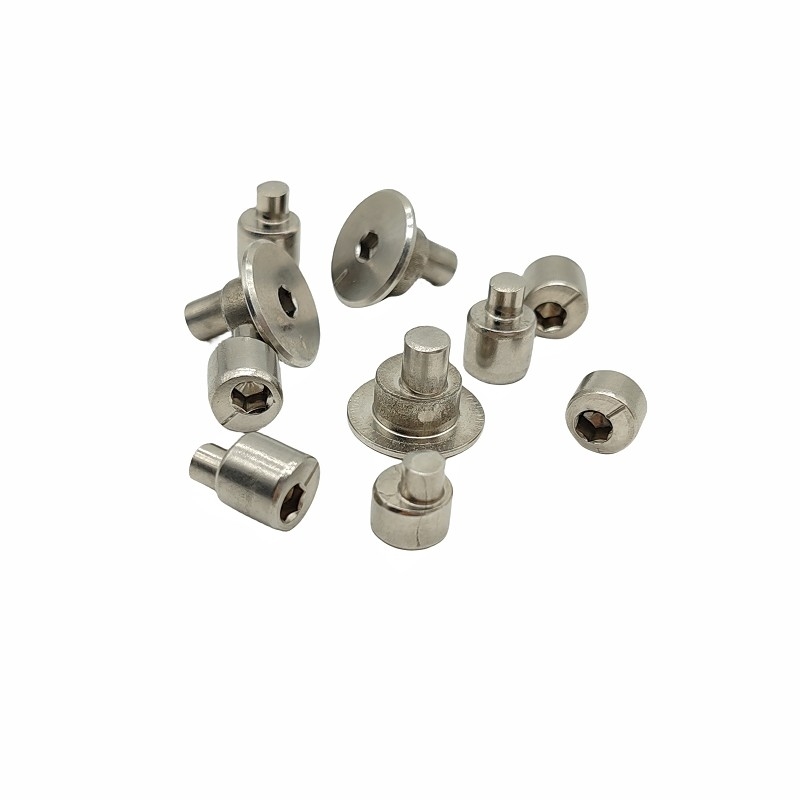

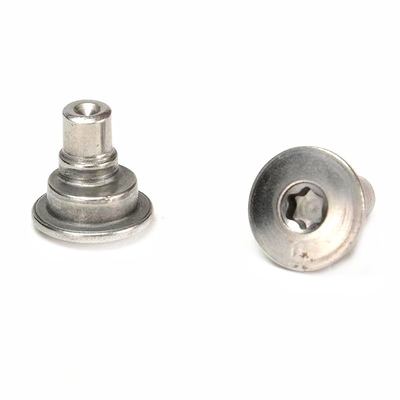

Precision Eccentric Locking Shafts for Smart Locks & Sliding Windows
We manufacture high-performance cold-formed eccentric locking shafts designed for smart locks and thermal break sliding windows, ensuring secure and smooth operation. Made from carbon steel (high strength) or stainless steel (corrosion-resistant), our shafts feature precise eccentricity for reliable locking mechanisms. We support full customization based on your drawings or samples, ensuring perfect compatibility with your hardware systems.
✅ Key Features:
✔ Optimized for Smart Locks & Windows – Ensures smooth engagement and long-term durability.
✔ Cold Forming Technology – Enhances mechanical strength (+25% vs. machined shafts).
✔ Corrosion-Resistant Options – Stainless steel (304/316) for outdoor & humid environments.
✔ Custom Eccentricity & Dimensions – Tailored to fit your lock or window mechanism.
✔ Fast Prototyping – Samples ready in 10-15 days after drawing approval.
Product parameters
| Specification | Material Options | Surface Treatment | Remarks |
|---|---|---|---|
| Production Process | Cold Forming | – | Enhances structural integrity |
| Standard Diameter | 1.0mm – 20mm (±0.05mm) | Custom diameters available | |
| Length Range | 2.0mm – 300mm (±0.1mm) | Extended lengths on request | |
| Material Grades | • Carbon Steel: SC435/10B21/20MnB4 • Stainless Steel: 302/304/316 |
Other alloys (e.g., alloy steel) optional | |
| Hardness (HRC) | Carbon Steel: 28-32 Stainless: 20-25 |
Adjustable per application needs | |
| Surface Finish | – | Carbon Steel: • Zinc plating (8-12μm) • Black oxide • Phosphating • Electro-galvanizing Stainless Steel: • Passivation • Electro-polishing • Sandblasting |
RoHS compliant options available |
| Eccentricity Tolerance | ±0.03mm | – | Tighter tolerances achievable |
| Customization | Accept OEM drawings & samples | – | MOQ: 50,000 pcs Standard lead time: 30 days |
(Applications)
